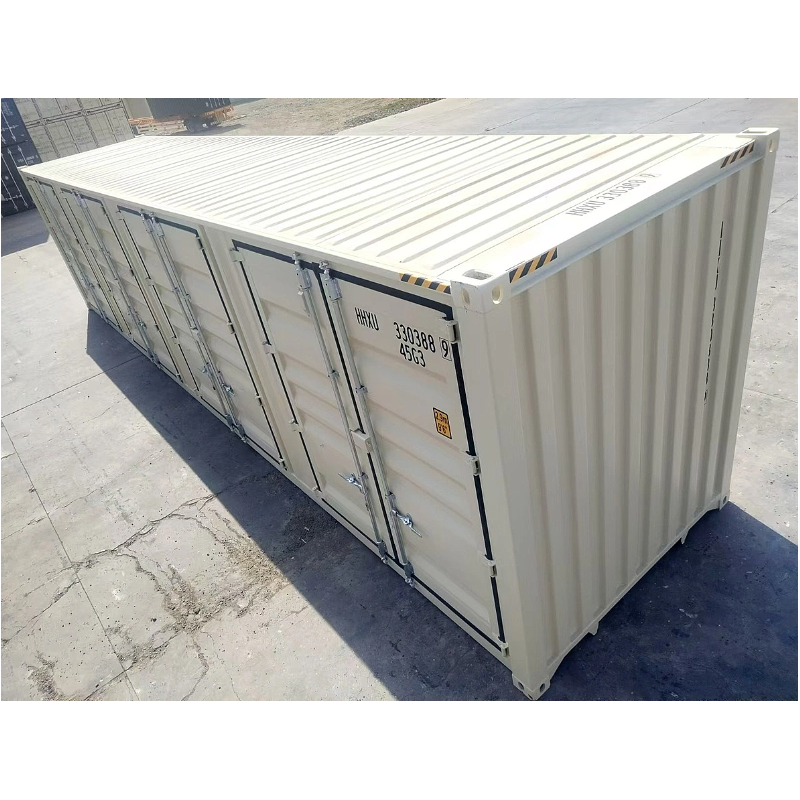

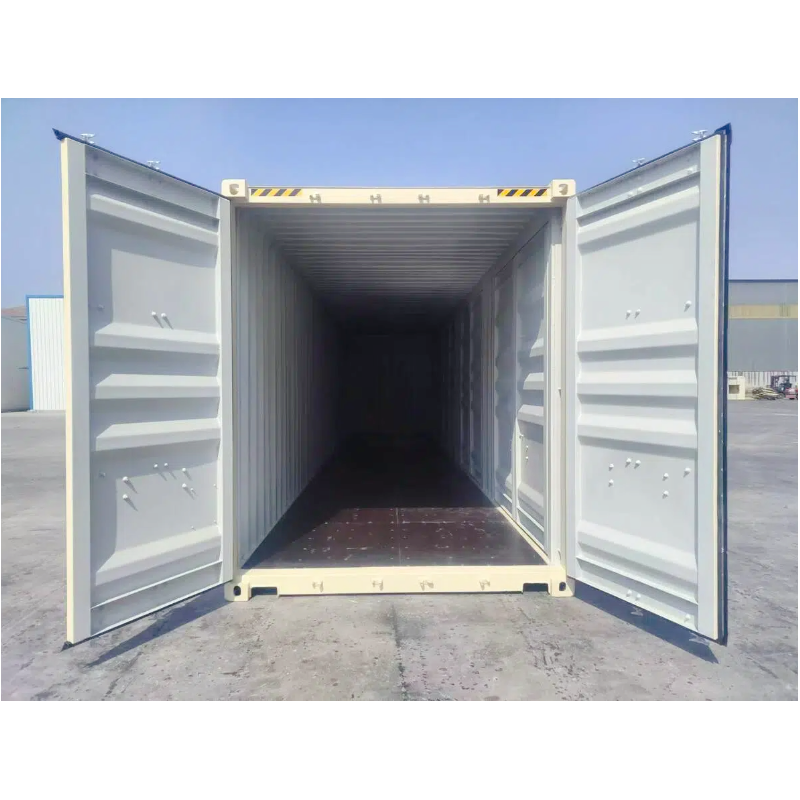

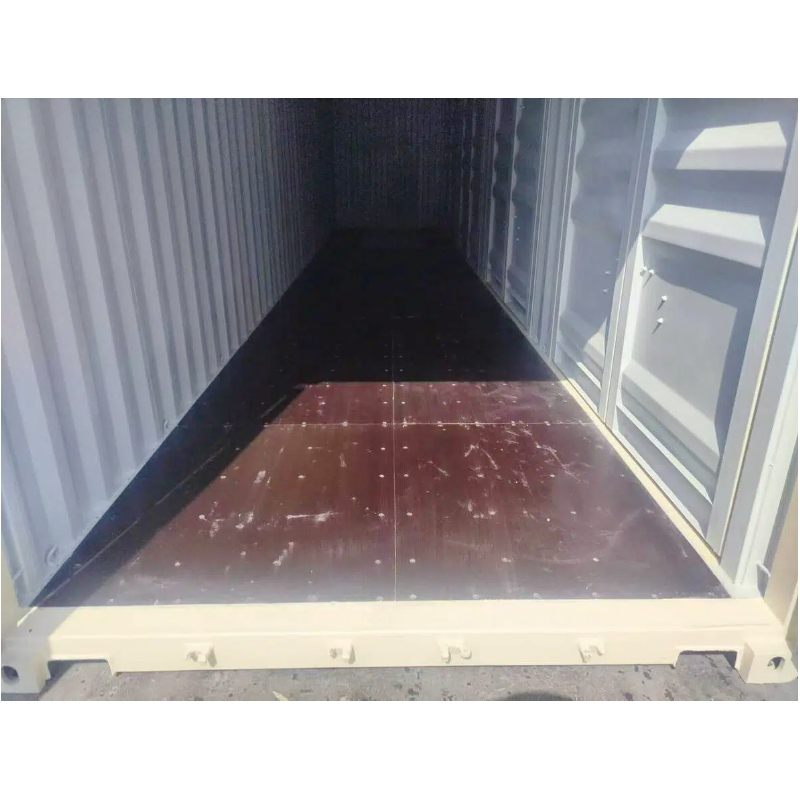

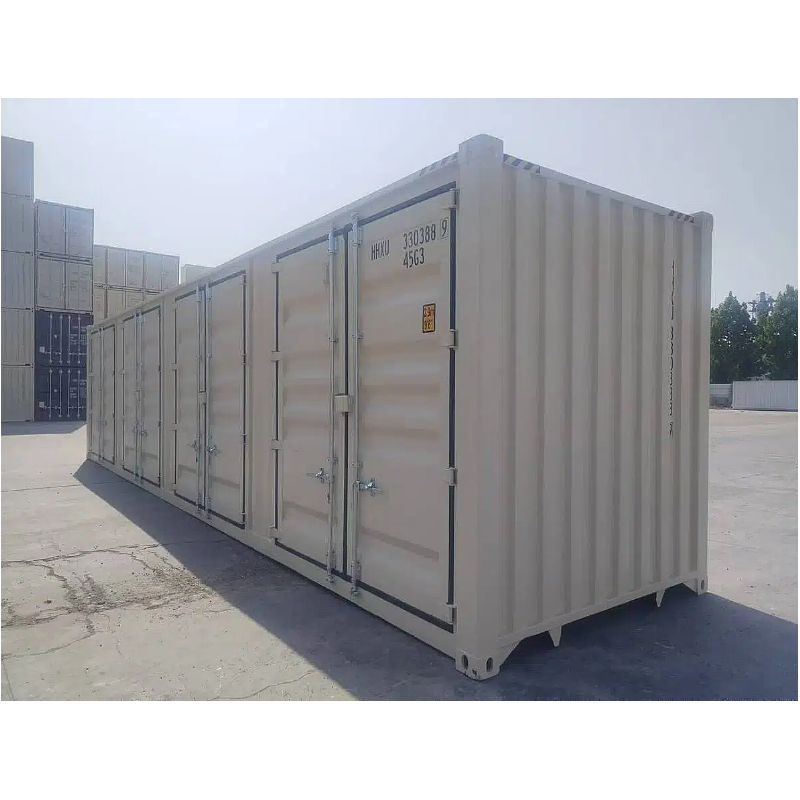

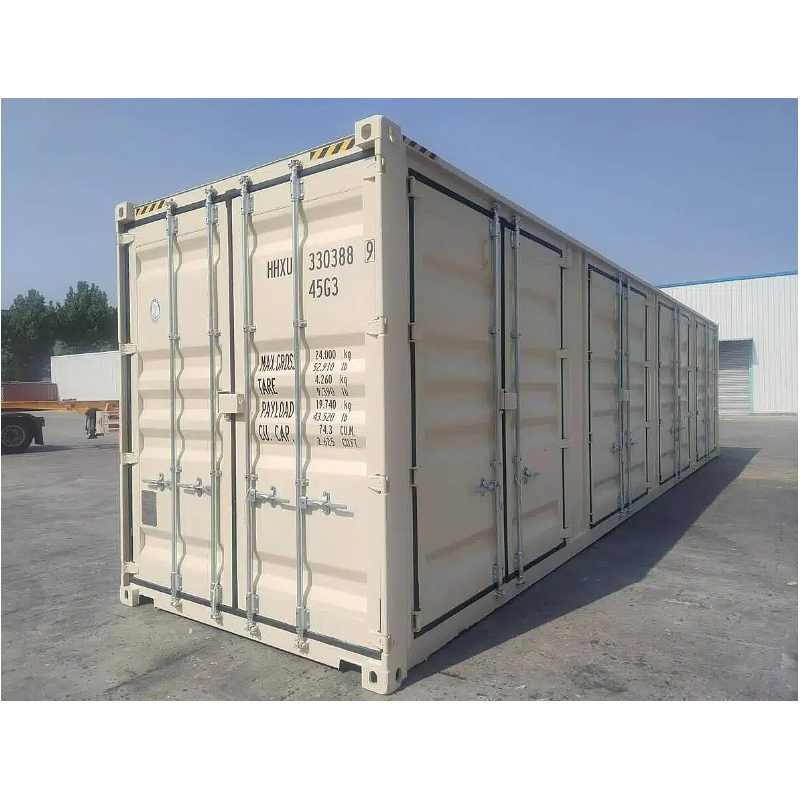

Mobile Warehouse 40ft Shipping Container Storage Garage Roller Door Warehouse Prefabricated Sheds Storage
- Overview
- Related Products
Description:
The introduction of portable storage containers revolutionized the storage and moving industry by providing consumers and businesses with a variety of options, greater flexibility, and the ultimate in convenience to meet specific individual needs. Different kinds of doors and partitions can be arranged as to your requirements. Not only saving the space, but also the goods can be stored in different situations and requirements. The size and load are designed based on the standard shipping containers with CCS certifications to be shipped directly. That means they can be loaded fully from Qingdao port for shipping and can be used as a self-storage container or warehouse at the site after unloading.
Specifications:
SPECIFICATION FOR DIFFERENT TYPES:
CONTAINER SIZE: 40FT
| DOOR TYPE | DOOR QTY. | DOOR OPENING (W*H) IN MM | DOOR OPENING (W*H) IN FT | SINGLE ROOM SIZE (L*W*H) IN MM | SINGLE ROOM SIZE (L*W*H) IN FT | INTERNAL CAPACITY/ROOM IN SQM. | INTERNAL CAPACITY/ROOM IN SQFT. |
| LOCKRODS DOOR / ROLLER SHUTTER DOOR | 1 | 1800*1880 | 5.9'*6.2' | 12020*2250*2295 | 39.4'*7.4'*7.5' | 62.1 | 668 |
| 2 | 1800*1880 | 5.9'*6.2' | 5960*2250*2295 | 19.6'*7.4'*7.5' | 30.8 | 331 | |
| 3 | 1800*1880 | 5.9'*6.2' | 3950*2250*2295 | 13'*7.4'*7.5' | 20.4 | 108 | |
| 4 | 1800*1880 | 5.9'*6.2' | 2930*2250*2295 | 9.6'*7.4'*7.5' | 15.1 | 220 | |
| 5 | 1460*1880 | 4.8'*6.2' | 2350*2250*2295 | 7.7'*7.4'*7.5' | 12.1 | 130 | |
| 6 | 1460*1880 | 4.8'*6.2' | 1950*2250*2295 | 6.4'*7.4'*7.5' | 10.1 | 109 | |
| 7 | 1200*1880 | 3.9'*6.2' | 1660*2250*2295 | 5.4'*7.4'*7.5' | 8.6 | 93 | |
| 8 | 1200*1880 | 3.9'*6.2' | 1450*2250*2295 | 4.8'*7.4'*7.5' | 7.5 | 81 | |
| 9 | 880*1880 | 2.9'*6.2' | 1280*2250*2295 | 4.2'*7.4'*7.5' | 6.6 | 71 | |
| 10 | 880*1880 | 2.9'*6.2' | 1150*2250*2295 | 3.8'*7.4'*7.5' | 5.9 | 64 |
STRUCTURE MATERIAL DETAILS
* SIDE & END ROOF BEAM: SQUARE TUBE 50MMX50MMX2.3MM
* END & SIDE CROSS MEMBER: BENDED STEEL PLATE
* FORKLIFT GROOVE: YES
* BOTTOM: STEEL PLATE
* ROOF SHEET: 2MM-THICK STEEL PLATE AFTER PROCESSING
* SIDE SHEET: 1.6MM-THICK STEEL PLATE AFTER PROCESSING
* CORNER FITTING: STEEL-CAST CORNER FITTING
* CORNER POST: 4MM-THICK BENDED STEEL PLATE
* INSULATION: 50MM-THICK EPS BOARD
* PRIMER PAINT: EPOXY ZINC RICH PRIMER
* MIDLLE PAINT: EPOXY MIO BARRIER PAINT
* FINISH PAINT: ACRYLIC FINISH / POLYURETHANE FINISH
Applications:
As a warehouse for goods storage, it has spacious space and is sturdy and durable. Its large capacity enables it to hold a substantial quantity of goods. The robust structure ensures the safety of the stored items, allowing it to withstand various environmental conditions and potential impacts.
Advantages：
1. High degree of prefabrication;
2. Energy saving and environment friendly;
3. Easy for loading and unloading;
4. The space can be divided or partitioned by walls as to your requirements;
5. Easy to be put at your garden place to be used as a tool room or self-storage unit;
6. More units can be stacked up to 7 levels to save the ground space;
7. Mass customization can make the price down.
FAQ：
Q: How many container will be used to load this container house?
A: This storage container can be transported directly as a container.
Q: How to assemble or install this tiny house?
A: We have the installation video for your references.
Q: Do we need to make the foundation for this tiny house?
A: To make this tiny house more stable and strong, it’s better to make a concrete foundation. But it’s not a must, the premise is to make the ground flat to put this house at the site there.
Q: How long will this house be lasted?
A: It can be used for more than 15 years.
